FACILITIES
          • CNC MILLING
          • CNC TURNING
          • HIGH-PRECISION JIG-BORING
          • WIRE EDM
          • HIGH-PRECISION CYLINDRICAL GRINDING MACHINING FACILITIES
          • 3D PRINTING
          • STATE OF THE ART INSPECTION FACILITIES
CNC MILLING
CNC LATHE
HIGH PRECISION JIG BORING MACHINE
HIGH PRECISION UNIVERSAL CYLINDRICAL GRINDING MACHINE
PRECISION CENTER LATHE
RAM TYPE TURRET MILLING MACHINE
cmm 1
HIGH PRECISION COORDINATE MEASURING MACHINE
MACHINE SPECIFICATIONS

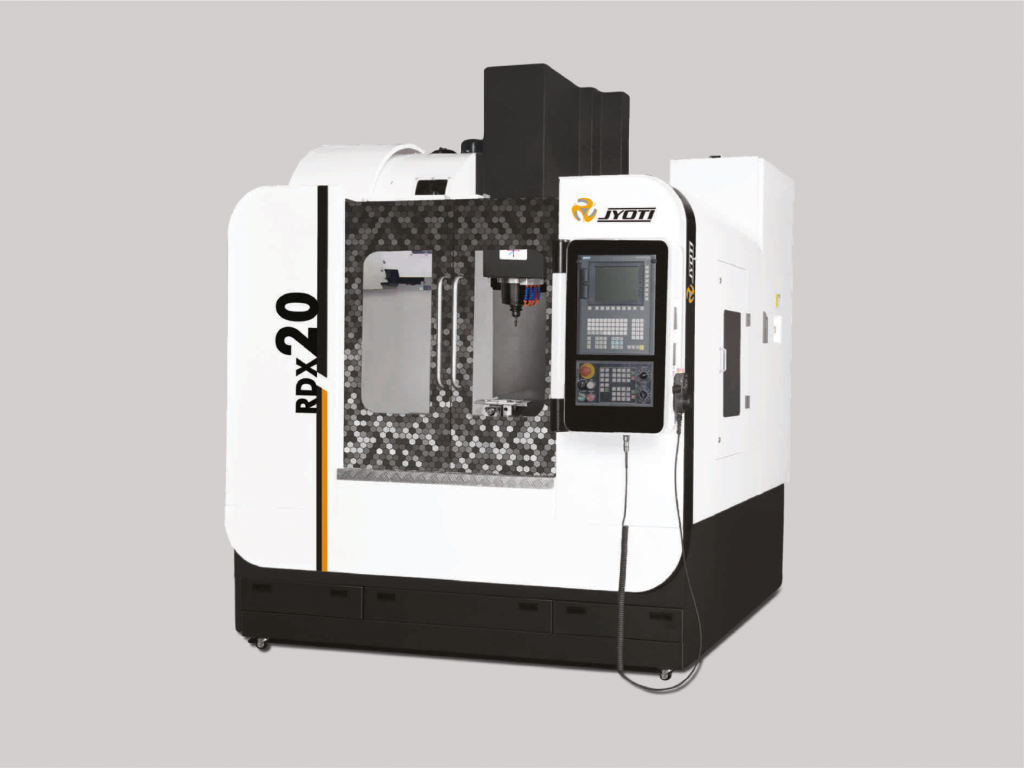

CNC MILLING – JYOTI RDX 20



Technical Specification:

X-Axis Travel : 820 mm
Y-Axis Travel : 510 mm
Z-Axis Travel : 510 mm
Spindle Speed : 8000 rpm (max)
Spindle Power : 15.8 / 10.5 Kw
Control System : Siemens 828Dipsum

CNC LATHE – JYOTI DX 200

Technical Specification:

X-Axis Travel : 200 mm
Z-Axis Travel : 500 mm
Max Turning Diameter : 365 mm
Admit Between Centres : 500 mm
Swing Over Bed : 500 mm
Number of Tool Stations : 8
Spindle Speed : 4000 rpm (max)
Spindle Power : 13.5 / 9 kW
Control System : Siemens 8280

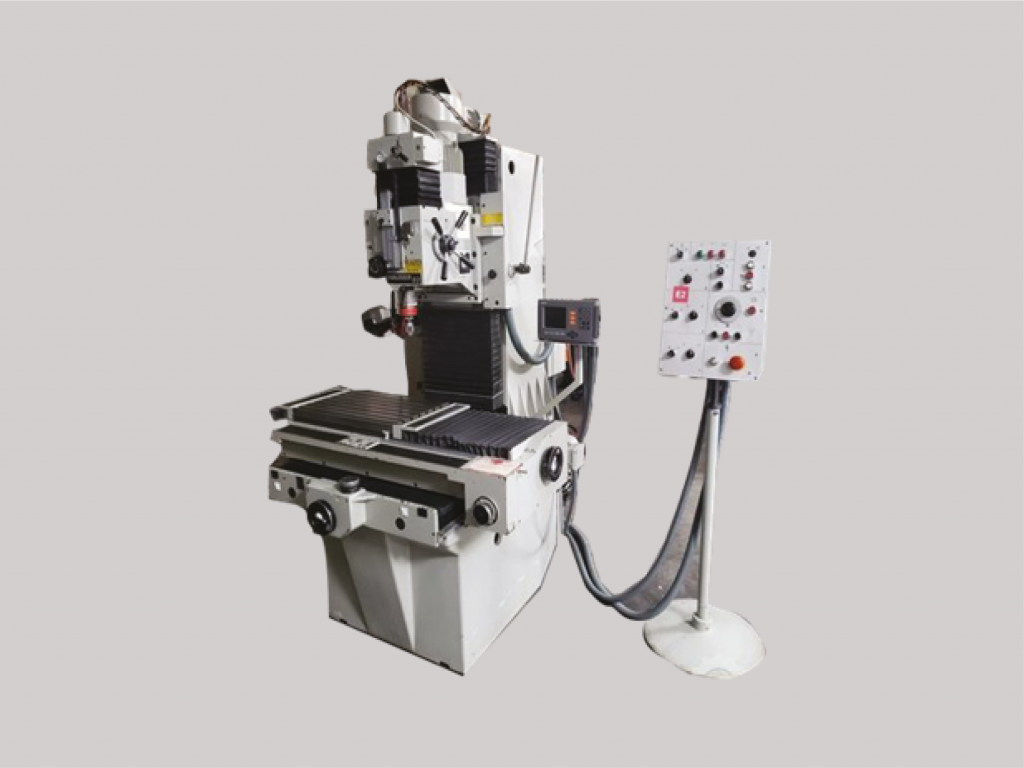

HIGH PRECISION JIG BORING MACHINE – HAUSER B3
 Technical Specification:

X-Axis Travel : 400 mm
Y-Axis Travel : 200 mm
Z-Axis Travel (Column) : 400 mm
W-Axis Travel (Quill) : 150 mm
Linear Axes DRO resolution : 1 µm
Rotary Table Diameter : 300 mm
Rotary Table Resolution : 5 arc second
Spindle Runout : Less than 1 µm

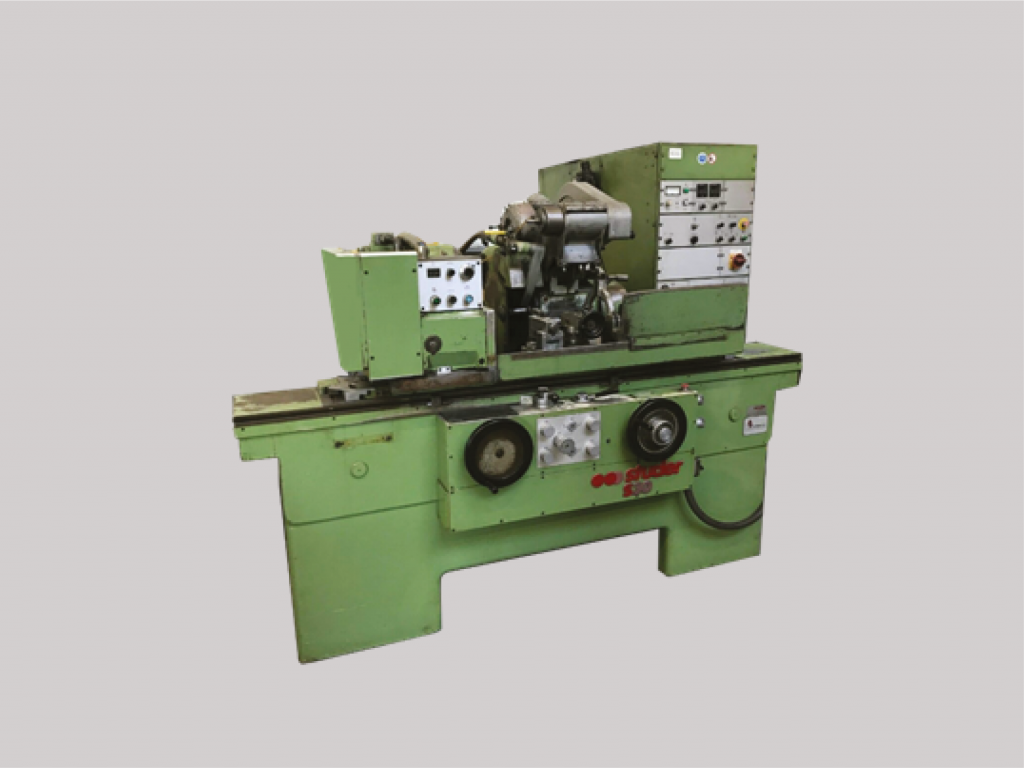

HIGH PRECISION UNIVERSAL CYLINDRICAL
GRINDING MACHINE – STUDER S30

Technical Specification:

Maximum Outside Diameter : 250 mm
Distance between centres : 650 mm
Centre Height : 125 mm
Resolution : 1 µm

Features:

• Hydrodynamic Work Head
• Guaranteed working precision : 0.0025mm for a gauge length of 610mm

PRECISION CENTRE LATHE – HMT NH26

Technical Specification:

Swing over bed : 575 mm
Swing over cross slide : 350 mm
Distance between centres : 1500 mm
Spindle Power : 11 kW

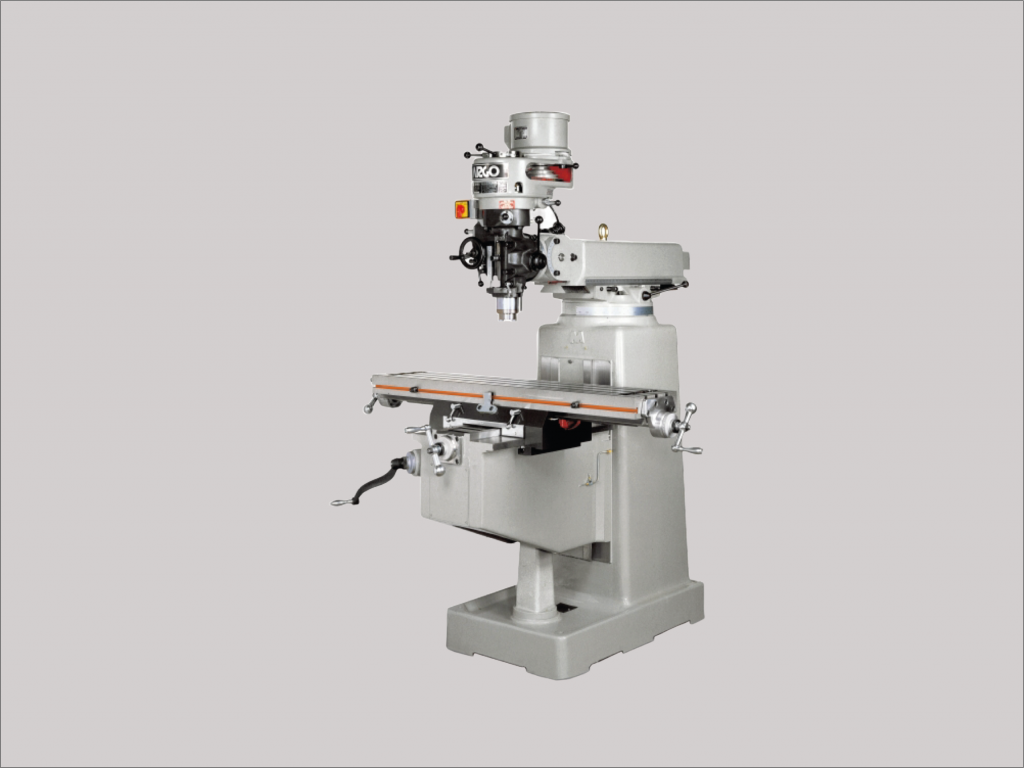

RAM TYPE TURRET MILLING MACHINE
– ARGO 4S with DRO in 3 Axes

Technical Specification:

X-Axis Travel : 890 mm
Y-Axis Travel : 384 mm
Z-Axis Travel : 407 mm
Quill Diameter : 86 mm
Quill Travel : 127 mm
DRO Resolution : 5 µm
Spindle Power : 3 HP with 8 speeds

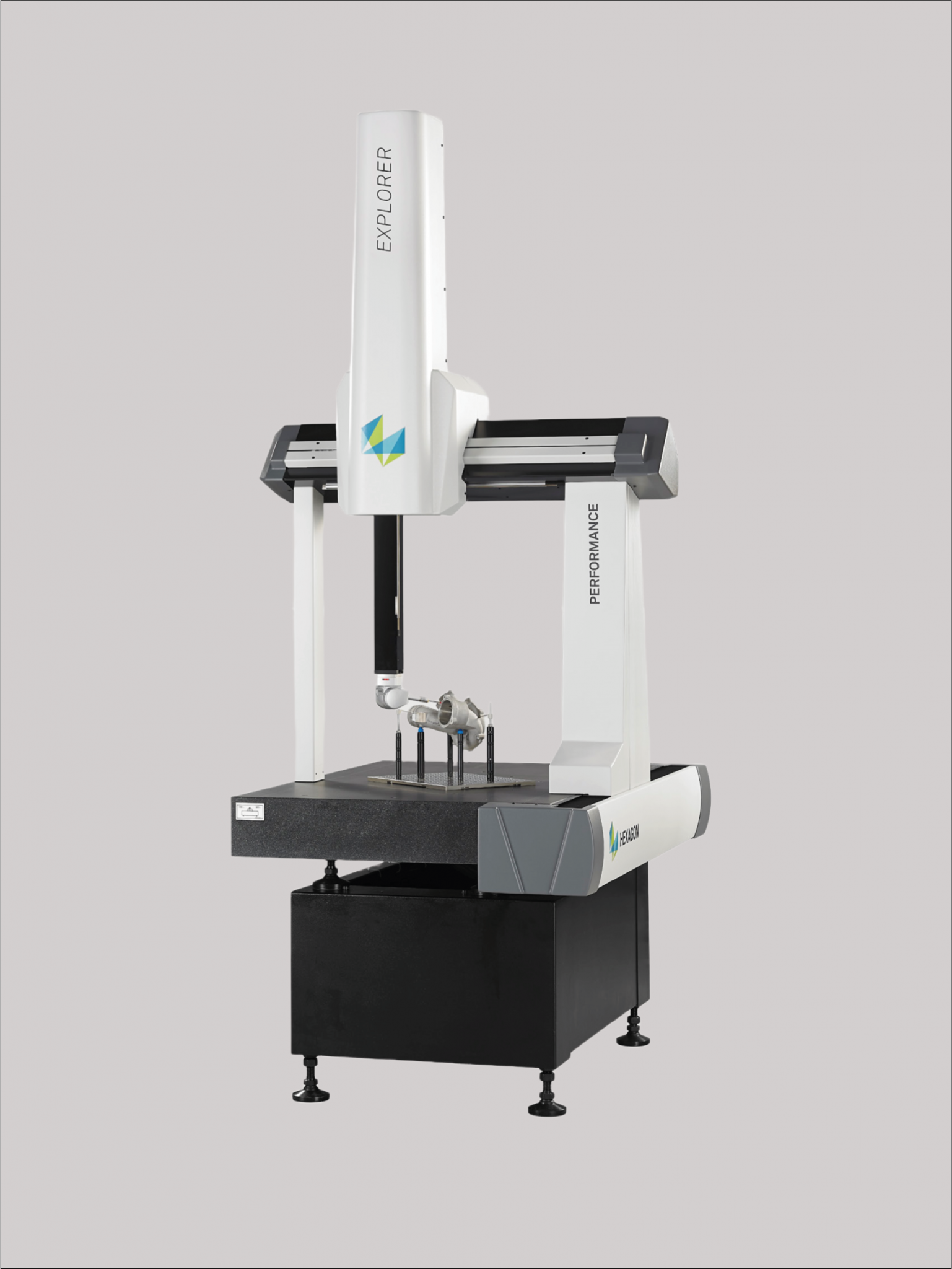

HIGH PRECISION CMM – HEXAGON EXPLORER PERFORMANCE – 8.10.6 X.µ.KIT CNC

Technical Specification:

X-Axis movement : 800 mm
Y-Axis movement : 1000 mm
Z-Axis movement : 600 mm
Accuracy:
MPEe (ISO 10 360-2) : 1.8+3.3l/1000 µm
MPEp (ISO 10 360-2) : 1.8 µm  Resolution : 0.039 µm

Features:

• High speed and High Precision CMM
• Hexagon 7.5 Deg motorized indexing Probe head with Hexagon HP-TM-EF Probe
• Advanced 3-Axis Multi-Sensor Capable
CNC Control System with “Fly” Function.
• Operator Control Jog-box for Motorized Axes Movement
• Automatic Thermal compensation for machine and part
• HEXAGON motorized indexing probe head having indexing steps of 7.5 DEG
